BVK PRO
The roof fan is designed for external installation, at the ends of ventilation ducting, in garages, residential, commercial and industrial buildings with a low level of particulate air pollution.
BVK roof fans are used in exhaust systems in various types of rooms. They are adapted for mounting on insulated and damped roof bases.
The diameter or cross-section of ventilation ducting depends on the size and the type of fan.
The roof fan is designed for external installation, at the ends of ventilation ducting, in garages, residential, commercial and industrial buildings with a low level of particulate air pollution.
FEATURES
— Vertical air discharge;
— Galvanised sheet metal construction;
— EC motor
— 0-10V control
— Adaptor plate with spigot has been added to in the kit
There are 6 models of the BVK PRO EC roof fan.
- BVK PRO 280 EC
- BVK PRO 315 EC
- BVK PRO 355 EC
- BVK PRO 450 EC
- BVK PRO 560 EC
- BVK PRO 630 EC

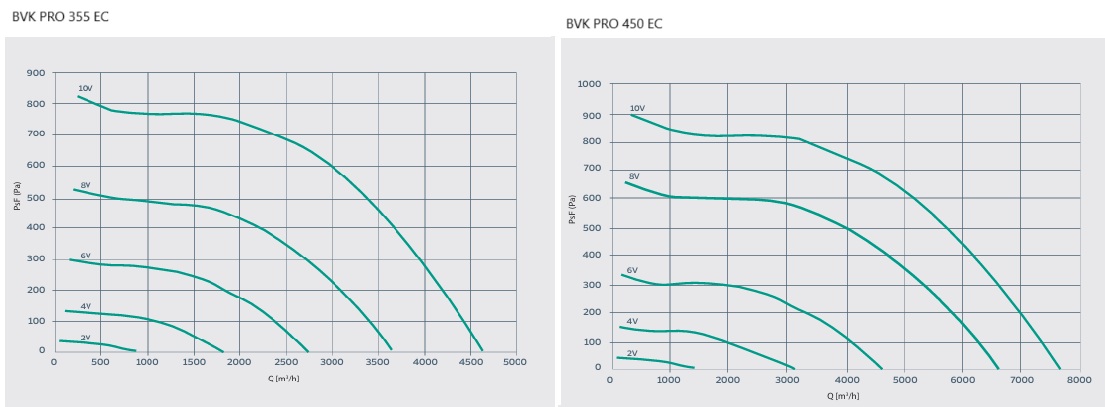

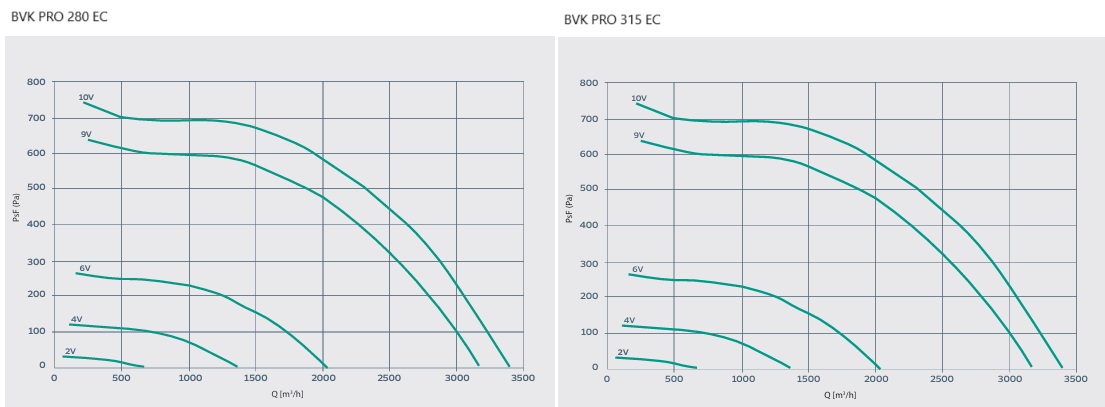

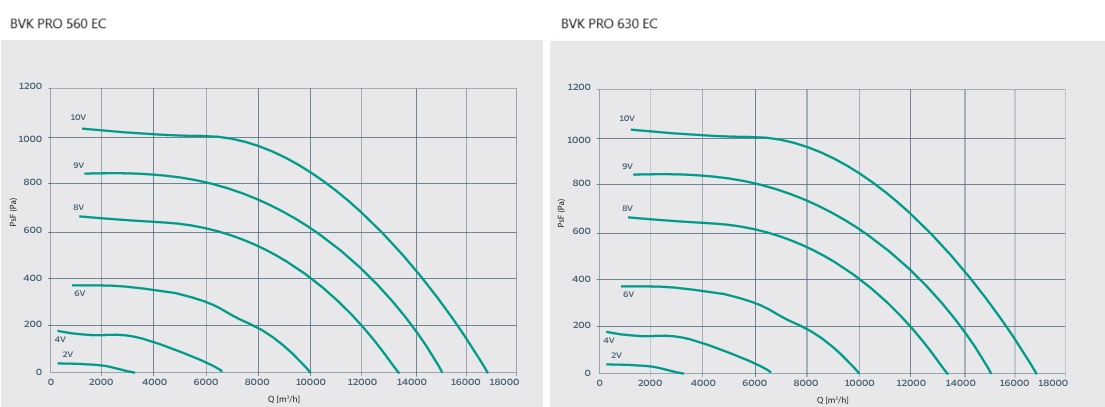

PERFORMANCE CHARACTERISTIC

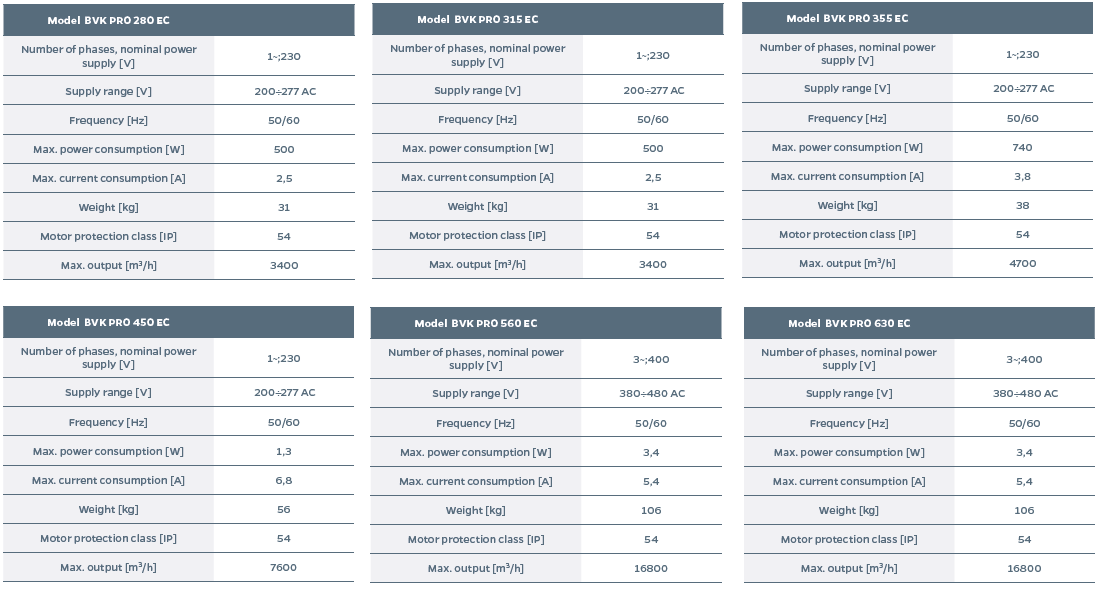

TECHNICAL DATA
