BTP EC PRO Duct Fan
BTP EC PRO series fans are used in ventilation systems that require relatively high pressure, strong air flow and low noise levels. They are an excellent solution for ventilation systems in residential buildings, collective housing and public buildings.
Designed for ventilation ducts with diameters of 125, 160, and 200 mm..
From £96.00
FEATURES
- BTP EC PRO fans are compact in size – suitable for installation in small spaces.
- Made of high-quality plastic.
- Equipped with highly effcient DC motors with EC technology and an external rotor with backward- curved blades. This solution saves electricity, achieves high effciency, and ensures optimal control across the entire speed range.
- The fan is switched on and its performance is controlled by an external 0-10V control signal.
- The fans should work with the CSR-B controller.
Available models of the BTP EC PRO series: 125, 160, and 200 mm
Duct fans with EC motor, mixed flow and capacity up to 1205 m3/h.

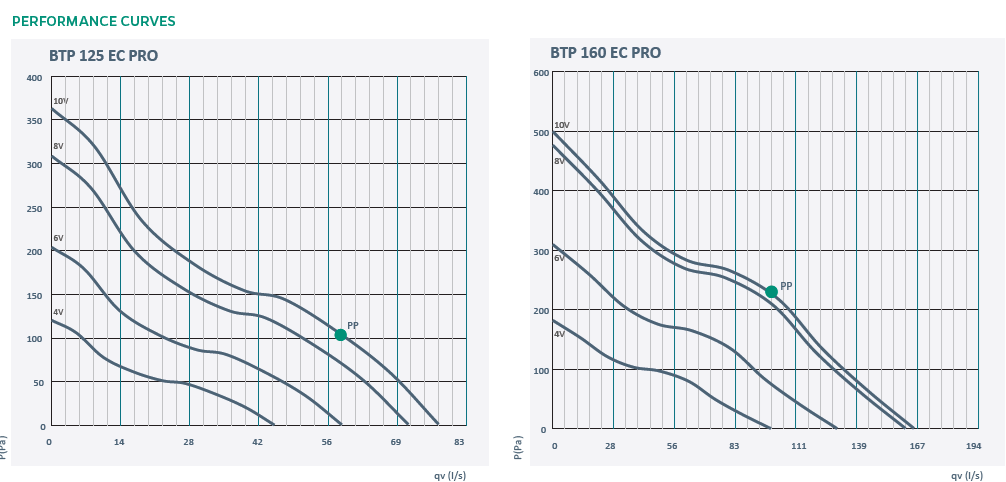

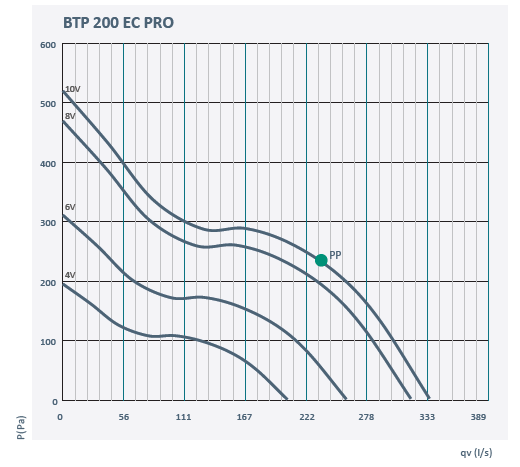

PERFORMANCE CURVES

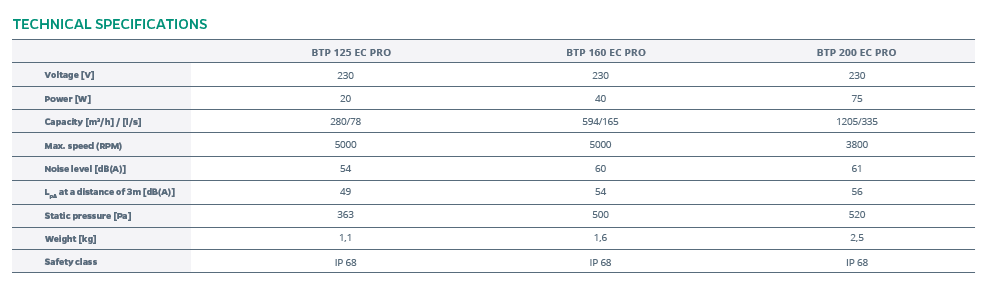

TECHNICAL DATA
