BSO PRO
The BSO PRO jet fan is designed for installation in car parks and large spaces to efficiently remove contaminated air.
The BSO PRO jet fan is designed for installation in car parks and large spaces to efficiently remove contaminated air.
FEATURES
— The fan is equipped with two silencers, a protective mesh on the inlet and a deflector on the air outlet
— The silencer is made entirely of galvanised steel sheet.
— Motor degree of protection at least IP55, insulation class F.
— Operating temperature from -20ºC to 40ºC.
— Supply voltage 400V, two-speed motor.

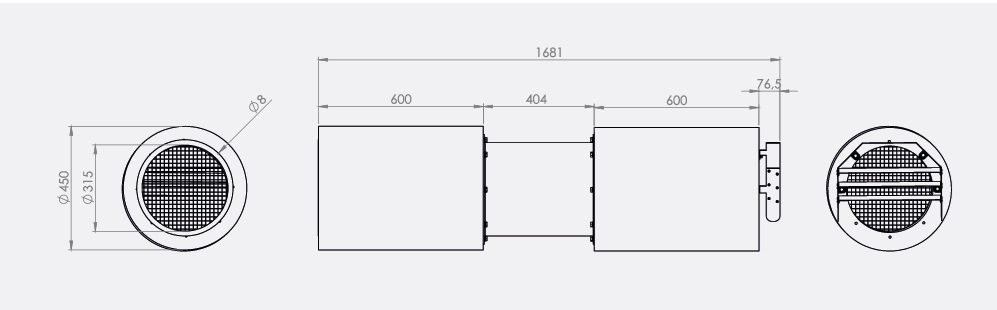

JET FAN BSO PRO 315 – diameter fi 315 mm
TECHNICAL DATA
