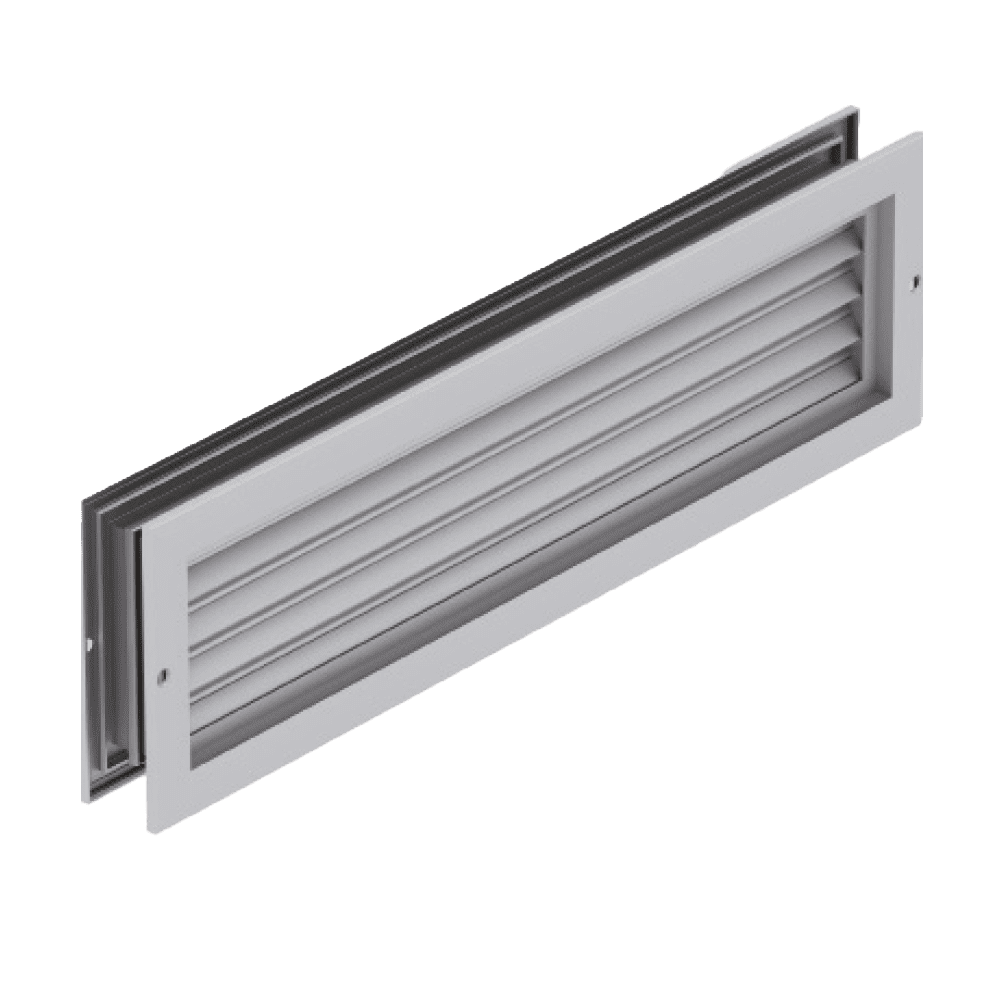

The Door Louvre fits most door widths, comes with an insect mesh, and is framed internally and externally. It is made from extruded aluminium, min 1.3 mm thick which offers very good corrosion resistance.
DIMENSIONS
Other dimensions on request
BRL34Z-GL HF is a Ventilation Glazed-in Louvre with increased flow area with 34 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 68% and physical free area is 48%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL34Z-SM HF is a Ventilation Surface Mounted Louvre with increased flow area with 34 Z-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm. Its visual free area is 68% and physical free area is 48%.
DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
BRL34V-GL is a Standard Ventilation Glazed-in Louvre with 34 V-blade. It is made of extruded alu profiles – EN AW-6060 T66 (AlMgSi0.5 F22) and stainless steel mesh – RVS (AISI 304) with apertures 2.3 x 2.3 mm.
DIMENSIONS:
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
