BOG Jet Fan in galvanised steel housing, designed for installation under the ceiling in garages and underground car parks, passageways and tunnels, where efficient ventilation of air polluted with exhaust fumes is required.
BOG Jet Fan in galvanised steel housing, designed for installation under the ceiling in garages and underground car parks, passageways and tunnels, where efficient ventilation of air polluted with exhaust fumes is required.
FEATURES
— The Fan set with two silencers, protection mesh on inlet and deflector on air outlet.
— The silencers are made of galvanised sheet metal.
— The optimal shape of the silencers minimises the height needed for installation and ensures quiet operation.
— Junction box accessible from the side via unscrewable plate.
— Supply voltage 400V 50Hz, two-speed motor.
— Motor protection degree at least IP55, insulation class F.
— Operating temperature from -20ºC to 40ºC.

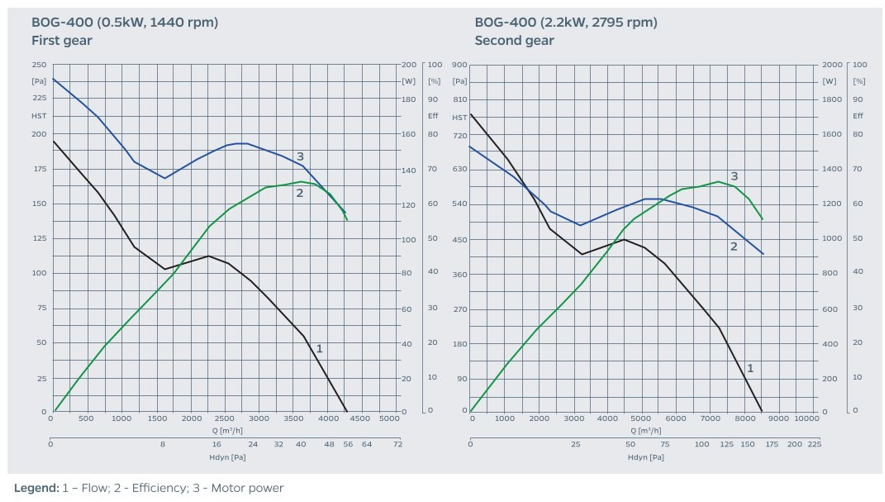

PERFORMANCE CURVES

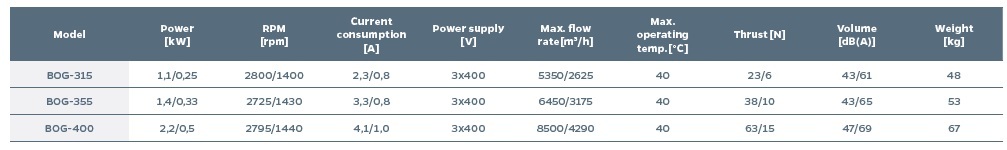

TECHNICAL DATA
