A roof fan designed for outdoor installation at the ends of ventilation ducting in residential, commercial and industrial buildings, where the degree of air pollution with solid particles is low. The fan can work with the CSR-B controller, which will ensure stable ventilation in all conditions and exactly according to the design guidelines.
BSB PRO EC
Inline duct fan in an insulated enclosure designed for installation in residential, commercial and industrial buildings with low degree of particle pollution. The fan can work with CSR-B controller which ensures stable ventilation in any conditions that will be performed exactly according to the design
guidelines.
Inline duct fan in an insulated enclosure designed for installation in residential, commercial and industrial buildings with low degree of particle pollution. The fan can work with CSR-B controller which ensures stable ventilation in any conditions that will be performed exactly according to the design
guidelines.
FEATURES
— The structure made of galvanized steel.
— Soundproof enclosure.
— EC motor equipped with a box for electrical connections.
— Possible automatic adjustment with the use of a multifunctional CSR-B controller, e.g. in a constant pressure system with an option to choose the operation pattern.
There are 6 models of the BSB PRO EC inline duct fan:
- BSB PRO 100 EC
- BSB PRO 125 EC
- BSB PRO 160 EC
- BSB PRO 200 EC
- BSB PRO 250 EC
- BSB PRO 315 EC

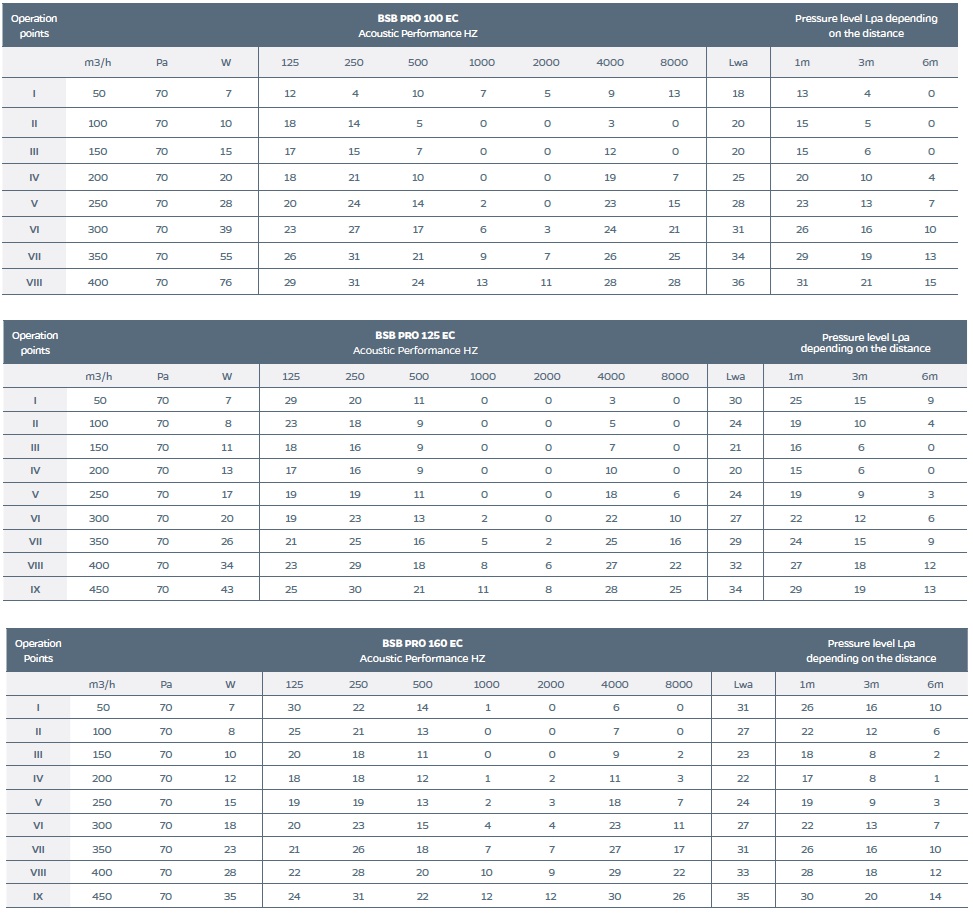

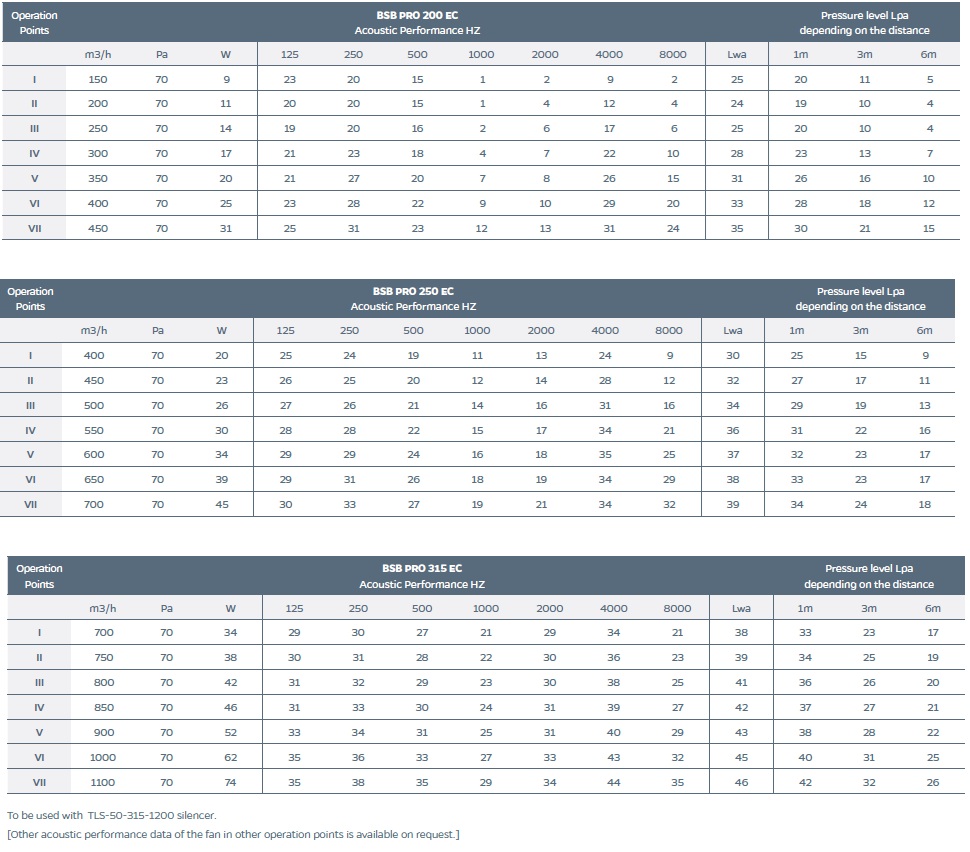

ACOUSTIC PERFORMANCE
TECHNICAL DATA
