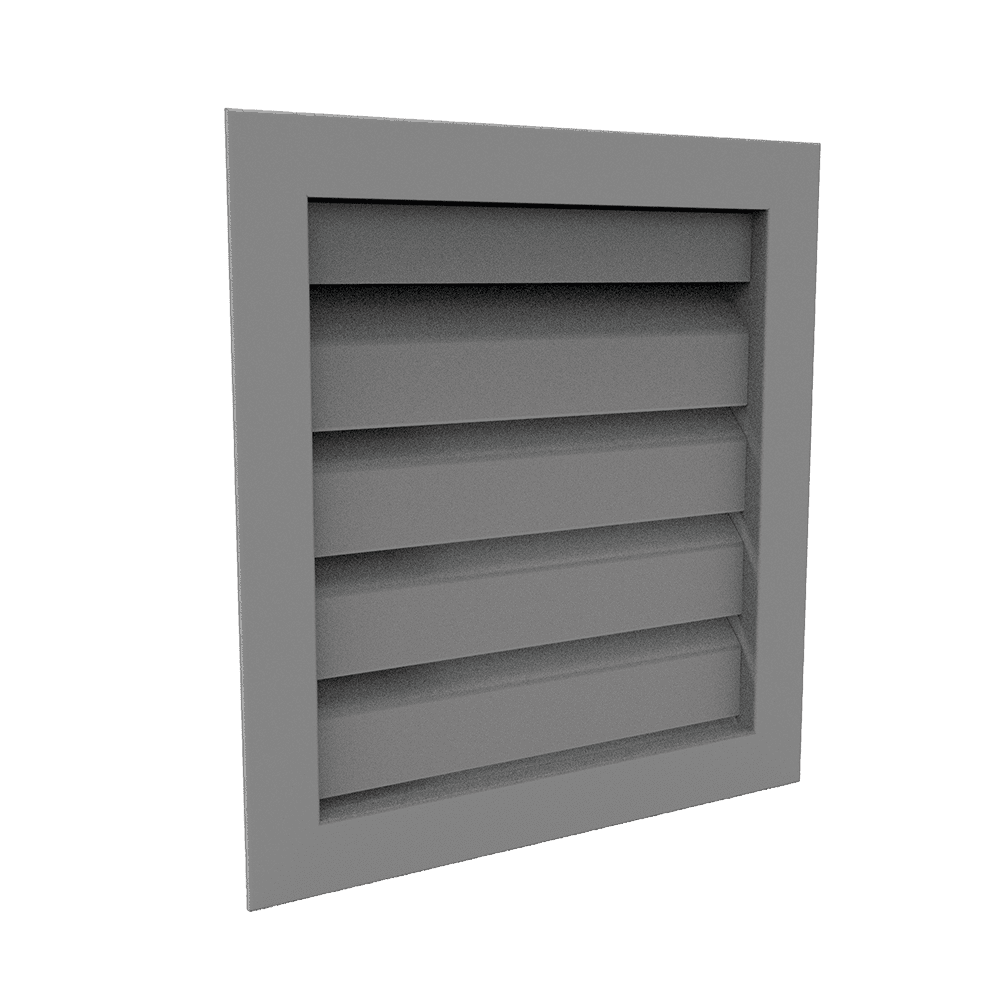

BRL65Z-FL EWR

The BRL65Z-FL EWR Extreme Water-Resistant Flanged Wall Louvre is designed to provide ventilation while offering enhanced resistance to water ingress in exposed environments. Featuring a 65 mm Z-blade design, this robust aluminium louvre is suitable for commercial, industrial and building-services applications where protection against wind-driven rain is an important consideration.

Manufactured from high-quality extruded aluminium profiles, the BRL65Z-FL EWR uses EN AW-6060 T66 aluminium (AlMgSi0.5 F22) and incorporates AISI 304 stainless steel mesh with 2.3 × 2.3 mm apertures. This combination provides a durable construction, while the mesh helps reduce insect ingress through the ventilation opening.

Designed for flanged wall installation, the BRL65Z-FL EWR can be fitted into a suitable external wall opening. Its increased water-resistance design makes it a practical choice for ventilation systems exposed to challenging weather conditions.

With a 31% visual free area and 14% physical free area, this model prioritises water resistance while providing a defined airflow passage. It is available in a wide range of dimensions, with bespoke sizes available on request.



DIMENSIONS

Min. dimension (height x width): 200 x 200 mm

Max. dimension (height x width): 2000 x 4000 mm

Other dimensions on request
