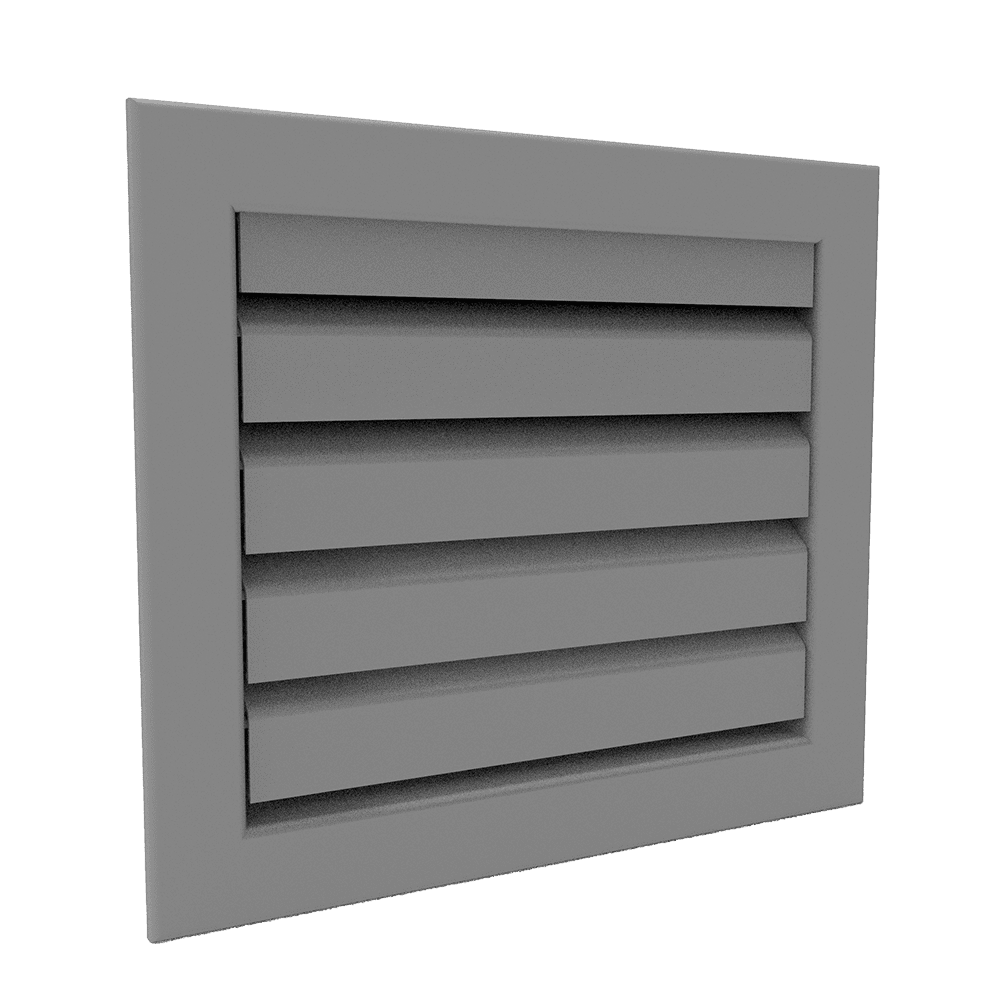

BRL34Z-FL EWR

The BRL34Z-FL EWR Extreme Water-Resistant Flanged Wall Louvre is designed to provide effective ventilation while offering enhanced resistance to water ingress in exposed environments. Featuring a 34 mm Z-blade design, this aluminium wall louvre is suitable for ventilation applications where protection against wind-driven rain is an important consideration.

Manufactured from high-quality extruded aluminium profiles, the BRL34Z-FL EWR uses EN AW-6060 T66 aluminium (AlMgSi0.5 F22) and incorporates AISI 304 stainless steel mesh with 2.3 × 2.3 mm apertures. This combination provides a durable construction and helps prevent insects from entering through the ventilation opening.

The EWR design is intended for installations requiring increased resistance to water penetration compared with standard ventilation louvres. Its integrated flange provides a practical mounting arrangement for installation over a suitable wall opening.



DIMENSIONS

Min. dimension (height x width): 200 x 200 mm

Max. dimension (height x width): 2000 x 4000 mm

Other dimensions on request
