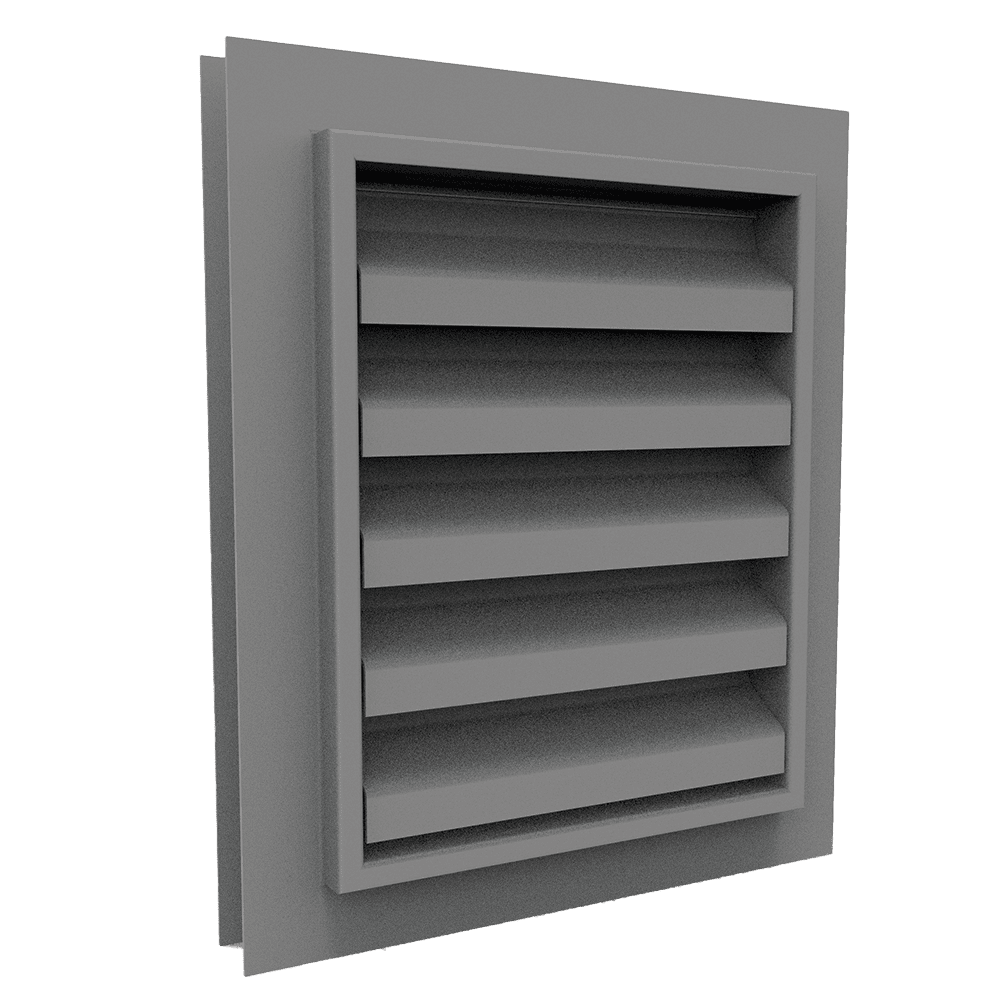

The Brookvent BRL34V-GL is a standard glazed-in ventilation louvre designed to provide effective airflow through glazed openings while maintaining a neat, integrated appearance. Featuring a 34 mm V-shaped blade configuration, this louvre combines practical ventilation performance with a durable aluminium construction, making it suitable for a range of commercial, industrial and building ventilation applications.
Manufactured from extruded aluminium profiles to EN AW-6060 T66 (AlMgSi0.5 F22), the BRL34V-GL is designed for installation within a compatible glazing system. Its V-blade arrangement provides a balance between visible openness and usable airflow, while integrated stainless steel mesh helps protect the opening from larger external debris.
With a 60% visual free area and 50% physical free area, the BRL34V-GL offers a practical ventilation solution for projects where airflow, glazing integration and a clean external finish are important considerations.
DIMENSIONS:
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
Other dimensions on request
