BRL75Z-FL

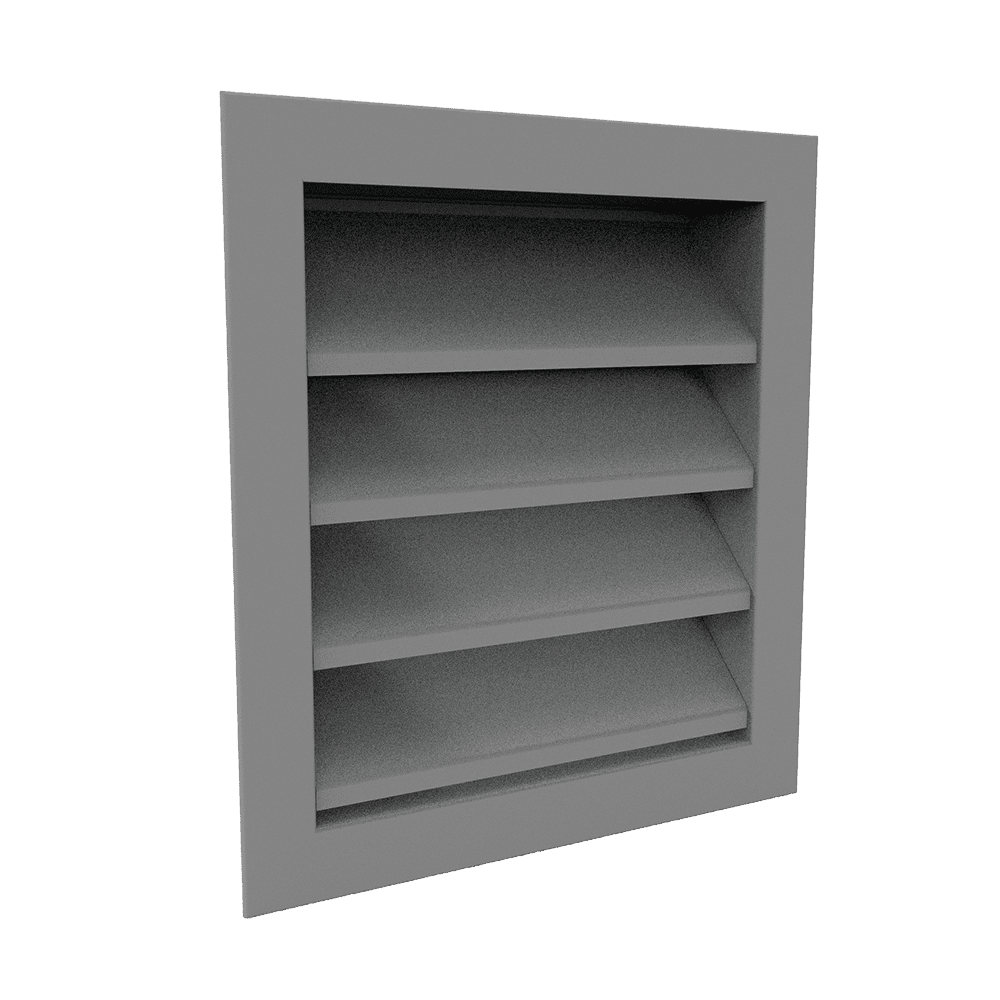

The Brookvent BRL75Z-FL is a standard aluminium ventilation wall louvre designed to provide effective air intake and exhaust through external walls and building facades. Featuring a 75 mm Z-blade configuration, it combines a durable extruded aluminium construction with a flanged mounting arrangement, making it suitable for commercial, industrial and building services applications.

Manufactured using EN AW-6060 T66 aluminium profiles, the BRL75Z-FL provides a robust solution for integrating ventilation openings into building envelopes. It incorporates stainless steel mesh manufactured from RVS/AISI 304, with 2.3 × 2.3 mm apertures, and is designed for installation into prepared wall openings.

With an 83% visual free area and 57% physical free area, the BRL75Z-FL offers a substantial open area for ventilation. It is available in rectangular and square configurations, with dimensions from 300 × 300 mm to 2000 × 4000 mm. Other sizes can be requested to suit specific project requirements.

DIMENSIONS

Min. dimension (height x width): 300 x 300 mm

Max. dimension (height x width): 2000 x 4000 mm

Other dimensions on request
