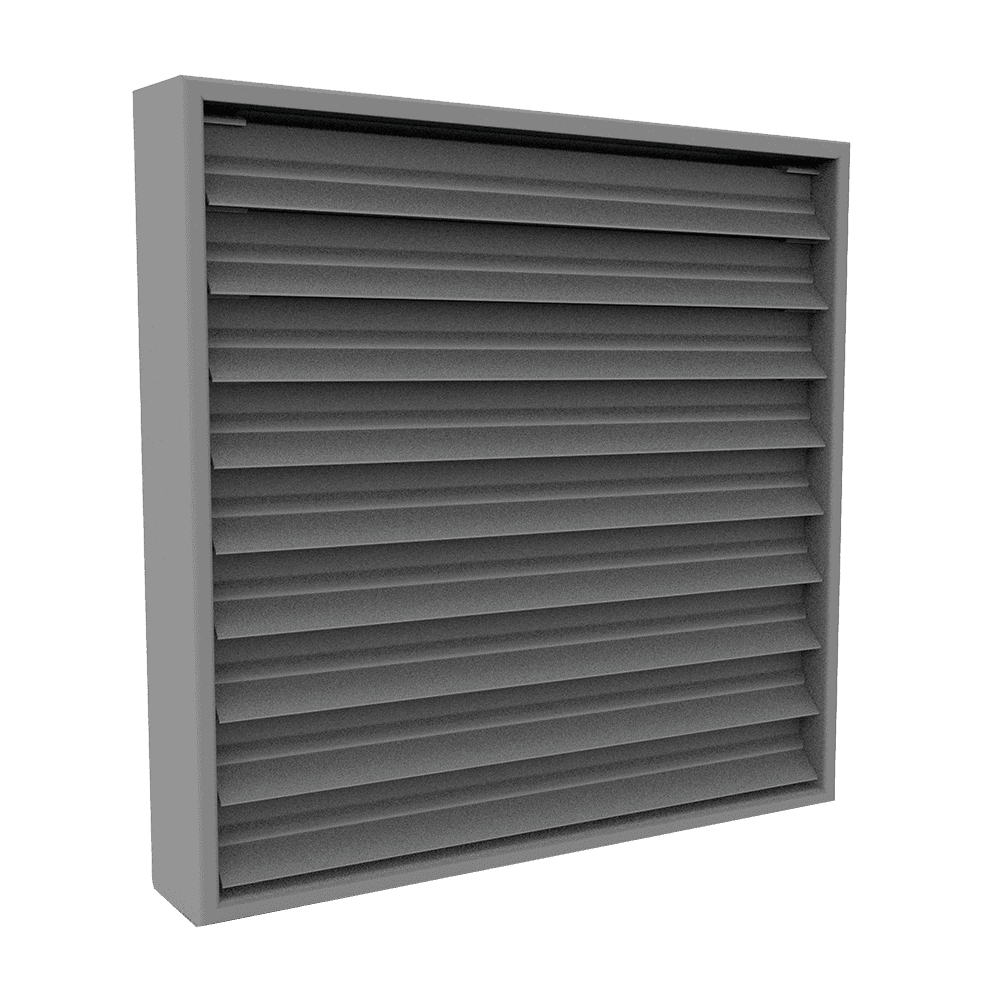

BRL20V-SM

The BRL20V-SM Standard Ventilation Surface-Mounted Louvre is designed to provide effective airflow through external walls while offering a durable construction and a clean, professional finish. Featuring a 20 mm V-blade design, this louvre is manufactured from high-quality extruded aluminium profiles and incorporates a stainless steel mesh to help prevent insects from entering the building.

Constructed from EN AW-6060 T66 aluminium (AlMgSi0.5 F22), the BRL20V-SM combines strength and durability with a lightweight design suitable for a variety of ventilation applications. The integrated AISI 304 stainless steel mesh features 2.3 × 2.3 mm apertures, providing a practical barrier against insects.

With a 94% visual free area and a 30% physical free area, the BRL20V-SM offers a high visual open area alongside a defined airflow passage. Its surface-mounted design allows it to be fitted externally over a suitable wall opening, making it a versatile choice for commercial, industrial and residential ventilation projects.

Available in dimensions ranging from 200 × 200 mm to 2000 × 4000 mm, with bespoke sizes available on request, the BRL20V-SM can be specified to suit a wide range of installation requirements.

DIMENSIONS
Min. dimension (height x width): 200 x 200 mm
Max. dimension (height x width): 2000 x 4000 mm
