Technology

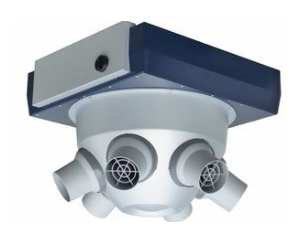

Optimum Air Distribution by Induction - Biddle’s innovative NOZ2 technology minimises temperature differences in the room and heat loss to the outside environment. Warm air is forced downwards at speed, from ceiling height to floor level through six multi-directional nozzles.
The high velocity of the air leaving the unit circulates the warm air throughout the room. This is known as the inductive effect. The inductive effect allows for better air distribution, so fewer units are needed to heat or cool large spaces. With an induction airflow rate of 10 times the primary air displacement, the NOZ2 temperature gradient is only 0.25 °C per metre. This makes it far more efficient than conventional air movement products, delivering significant energy savings.
Biddle’s industry-leading CHIPS technology constantly searches for the best possible mix of air volume and heat. With conventional air heaters only the fan speed is automatically controlled so air volume and heat are interlinked. With CHIPS technology air movement and heat output are controlled independently to deliver optimum performance.
To achieve optimum air distribution throughout the room, and ensure warm air always reaches the floor level, the nozzles need to be set at the correct angle. This is determined by the floor area to be heated or cooled and the height of the room.
Controls
Automatic Control
- Self-regulating
- Always the correct setting
- Intelligent software
- b-touch control panel
- Modbus communication
B-Control
- Stepless control (0-10 V)
- On/Off (room thermostat)
- EC Fans
- Easy to set
- Control multiple devices
