SKU 47849

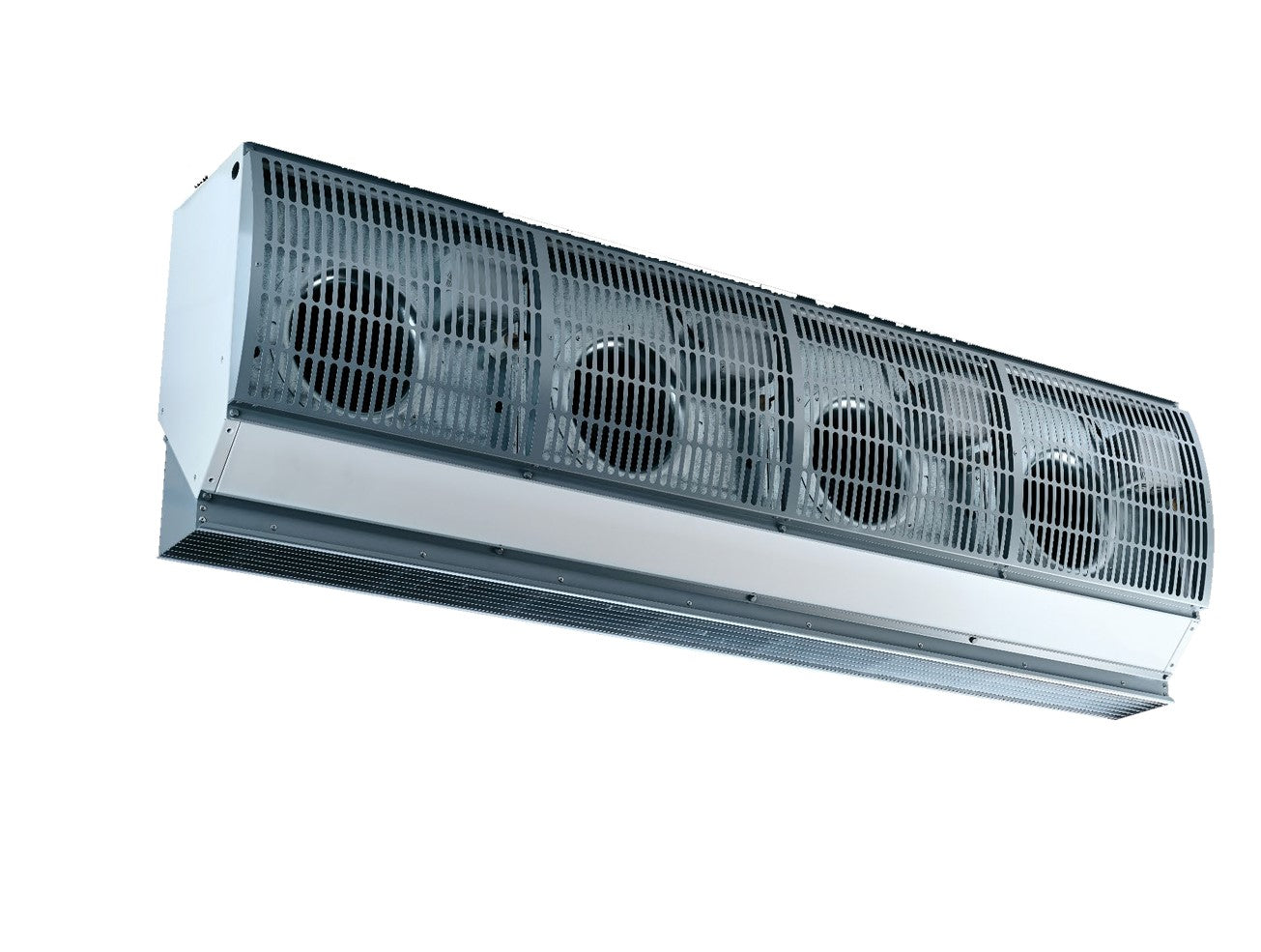

ISOLAIR2 Chilled Room Air Curtain

The IsolAir2 chilled room air curtain is the perfect solution for indoor climate separation which does not require heating. Fitting an IsolAir2 air curtain above the doorway ensures an ideal separation between two temperature zones, whilst energy consumption is kept to a minimum. The air curtain is specifically designed for indoor climate separation where several climate zones are more or less constant. The IsolAir is applied in chilled rooms of production companies, distribution centres and in small cold stores in supermarkets.

Climate Separation without heating

When a building consists of several climate zones, an open inside door leads to air displacement and as a consequence energy loss. An IsolAir above an open door provides very efficient climate separation between the two areas limiting energy consumption

Technology

An air curtain above an open inside door provides climate separation of the two rooms. Whilst developing the IsolAir2, Biddle chose to use its well-known outlet discharge pattern, the Double Rectifier. The IsolAir2 is equipped with radial backward curved fans which homogeneously distribute the air across the whole discharge opening, producing high efficiency and comfort levels. If a conventional air curtain without a rectifier discharges air at the same velocity as a unit with a Double Rectifier, the downward penetration is tangibly less. The air stream does not reach the floor, and the open door is not covered off properly. Consequences include draught, loss of energy and comfort complaints.

Double rectifier

• Significant climate separation efficiency (80%) • Excellent downward penetration • Minimal air volume, air speed and heating capacity • Energy efficiency

Controls

Automatic control

- Incl. door contact switch - Correct temperature sets automatically - 2 settings: pre-set - 2 step control – control 2 units with a maximum 4m door width

Product Brochure Download
