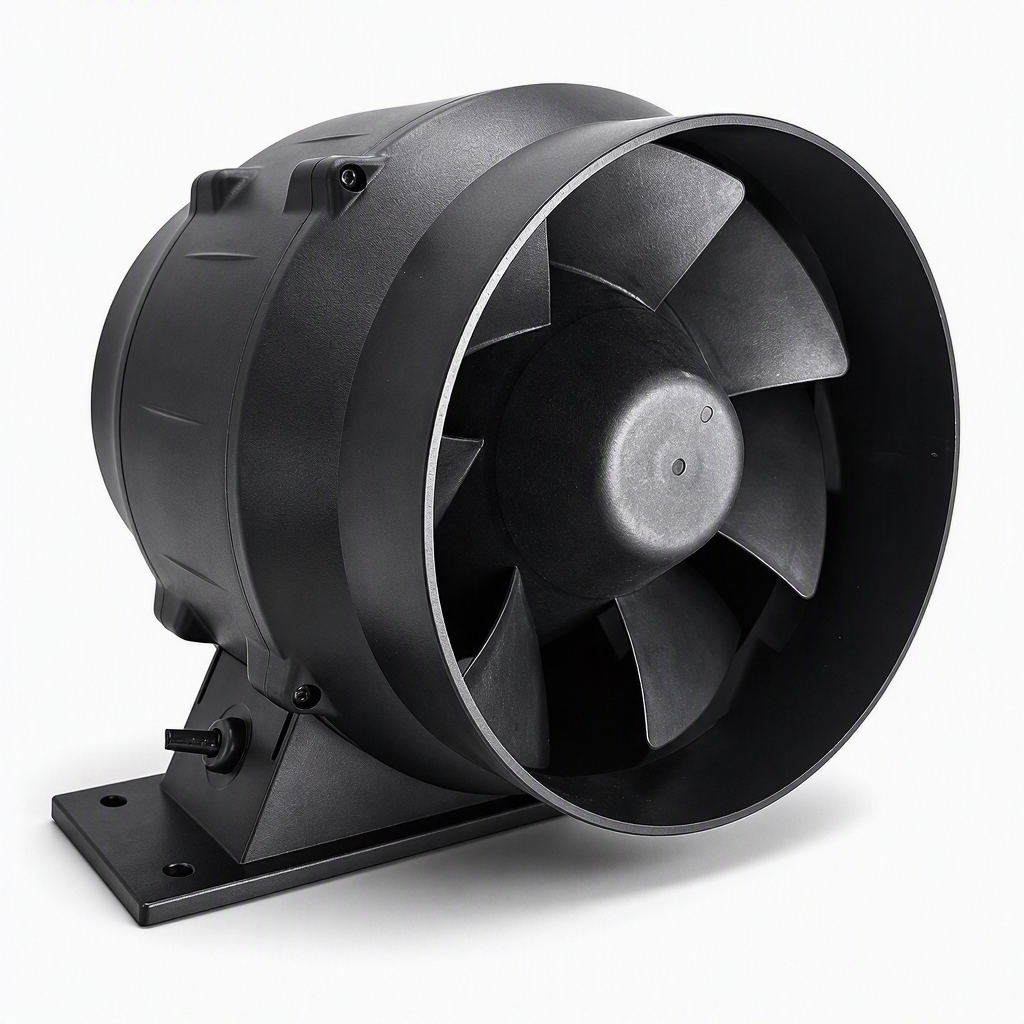

BTP EC PRO Duct Fan

The Brookvent BTP EC PRO Duct Fan is a high-performance inline ventilation fan designed to deliver powerful, efficient and controllable airflow in ducted ventilation systems. Combining a compact design with advanced EC motor technology, the BTP EC PRO is engineered for applications requiring relatively high pressure, strong air movement and low noise levels.

Suitable for residential developments, apartment buildings and public buildings, the BTP EC PRO provides a versatile solution for ventilation systems where dependable performance and precise airflow control are essential. Its compact dimensions make it particularly suitable for installations where space is limited, allowing it to be incorporated into a variety of ductwork layouts.

At the heart of the fan is a highly efficient electronically commutated (EC) motor with an external rotor and backward-curved impeller blades. This design supports efficient operation and enables the fan's speed to be adjusted to meet the requirements of the ventilation system. The fan is controlled using an external 0–10 V control signal, allowing its performance to be regulated in response to system demand.

Manufactured with a high-quality plastic housing, the BTP EC PRO combines lightweight construction with practical installation flexibility. It is available in three duct connection sizes—125 mm, 160 mm and 200 mm—making it suitable for a range of ventilation designs.

With airflow capacity of up to 1,205 m³/h, depending on the model and operating conditions, the Brookvent BTP EC PRO offers a flexible solution for projects seeking efficient mechanical ventilation in a compact inline format.
