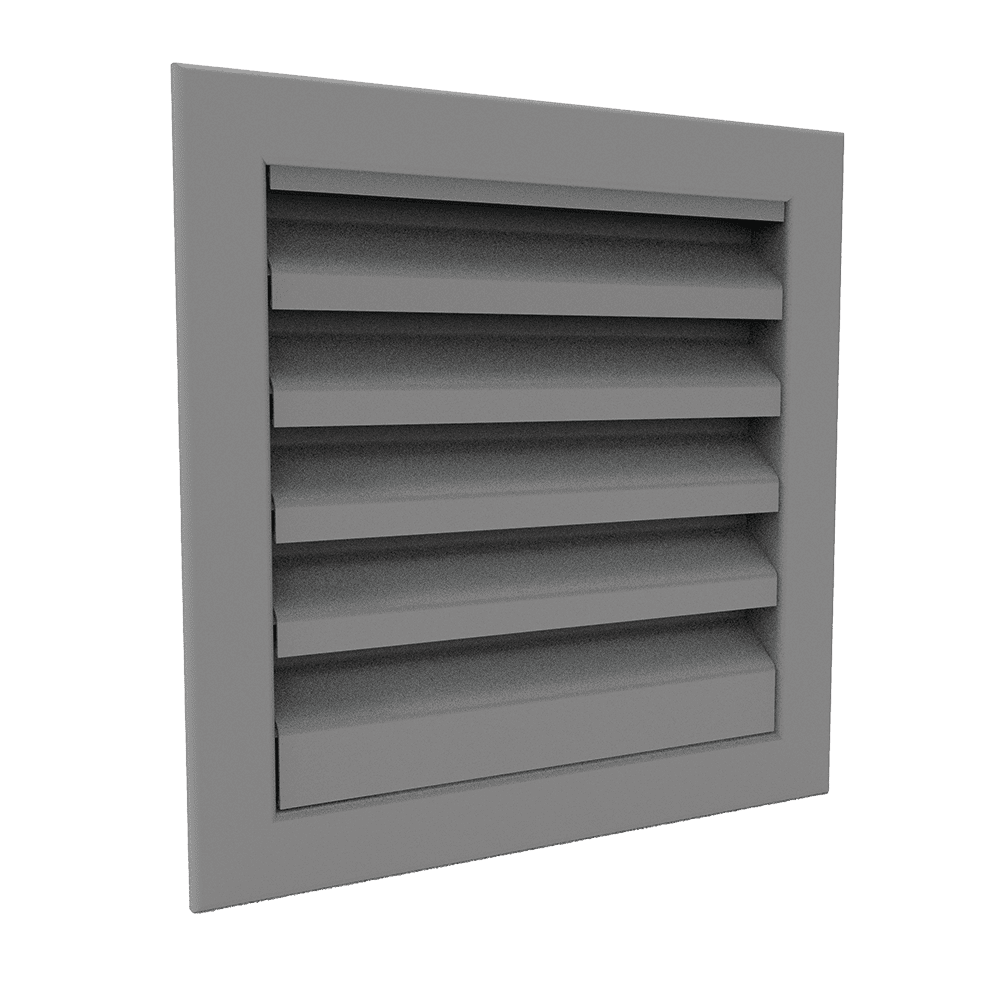

BRL34Z-FL HF

The BRL34Z-FL HF High-Flow Ventilation Wall Louvre is designed to provide increased airflow for ventilation applications where a larger physical free area is required. Featuring a 34 mm Z-blade design, this flanged wall louvre combines efficient airflow characteristics with a durable aluminium construction, making it suitable for a wide range of commercial, industrial and building ventilation projects.

Manufactured from high-quality extruded aluminium profiles, the BRL34Z-FL HF uses EN AW-6060 T66 aluminium (AlMgSi0.5 F22) and incorporates AISI 304 stainless steel mesh with 2.3 × 2.3 mm apertures. The mesh helps reduce the entry of insects and unwanted debris while allowing air to pass through the louvre.

The high-flow (HF) design provides a 68% visual free area and 48% physical free area, offering increased airflow capacity compared with the standard BRL34Z-FL model. Its integrated mounting flange provides a practical solution for installation over a suitable wall opening.

Available in a range of dimensions, the BRL34Z-FL HF can be specified for different project requirements, with bespoke sizes available on request.



DIMENSIONS

Min. dimension (height x width): 200 x 200 mm

Max. dimension (height x width): 2000 x 4000 mm

Other dimensions on request
